MD-124

Double-Balanced Mixer

MD-124 Features

* n n n n FP-2 Usable down to 200 KHz Conversion Loss: 6.5 dB Typical Impedance: 50 Ohms Nominal Maximum Input Power: 300 mW max. @ 25°C, Derated to 85°C @ 3.2 mW/°C n IF Port Current: 50 mA Max. n MIL-STD-883 Screening Available Description Transformers convert to the LO and RF paths to balanced l

MD-124 General Description

Transformers convert to the LO and RF paths to balanced lines connecting a low barrier, Schottky diode ring quad. These transformers help provide excellent isolation between ports. Conversion loss is low. The direct connection of the IF port to the diode quad allows these mixers to be used as phase .

MD-124 Datasheet (192.95 KB)

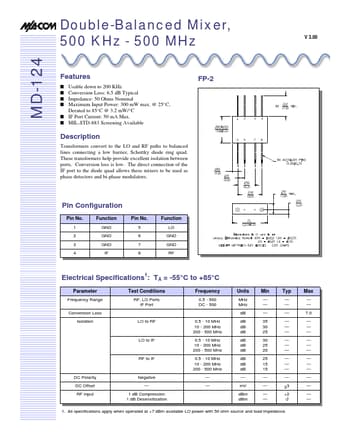

Preview of MD-124 PDF

Datasheet Details

Part number:

MD-124

Manufacturer:

Tyco

File Size:

192.95 KB

Description:

Double-balanced mixer.
