MD-148

Double-Balanced Mixer

MD-148 Features

* n Fully Hermetic Package n 1 dB Compression Point: +5 dBm n Conversion Loss: 6 dB Typical Midband n LO-RF/LO-IF Isolation: 40 dB Typical Midband n Impedance: 50 Ohms Nominal n Maximum Input Power: 300 mW Max, Derated to 85°C @ 3.2 mW/°C n X Port Current: 50 mA Max. n MIL-STD-883 Screening Available

MD-148 General Description

Transformers convert the LO and RF paths to balanced lines connecting to a medium barrier, Schottky diode ring quad. These transformers help provide excellent isolation between ports. Conversion loss is low. The direct connection of the IF port to the diode quad allows these mixers to be used as pha.

MD-148 Datasheet (50.91 KB)

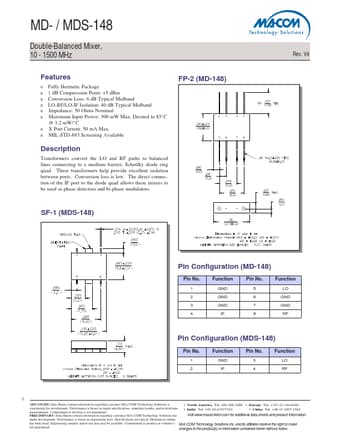

Preview of MD-148 PDF

Datasheet Details

Part number:

MD-148

Manufacturer:

MA-COM

File Size:

50.91 KB

Description:

Double-balanced mixer.
