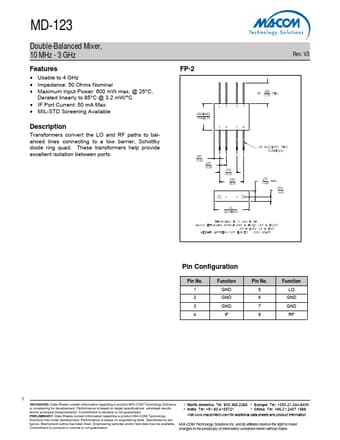

MD-123 Datasheet, Mixer, MA-COM

MD-123 Features

• Mixer
• Usable to 4 GHz
• Impedance: 50 Ohms Nominal
• Maximum Input Power: 600 mW max. @ 25°C, Derated linearly to 85°C @ 3.2 mW/°C
• IF Port Current: 50 mA M

PDF File Details

Part number:

MD-123

Manufacturer:

MA-COM

File Size:

91.25kb

Download:

📄 Datasheet

Description:

Double-balanced mixer. Transformers convert the LO and RF paths to balanced lines connecting to a low barrier, Schottky diode ring quad. These transformers
