This datasheet PDF includes multiple part numbers: GP15B, GP15A. Please refer to the document for exact specifications by model.
Datasheet Details
- Part number
- GP15B, GP15A
- Manufacturer
- MCC
- File Size
- 395.30 KB
- Datasheet
-
GP15A-MCC.pdf
- Description
-
1.5 Amp Glass Passivated Junction Rectifiers
- Note
- This datasheet PDF includes multiple part numbers: GP15B, GP15A.
Please refer to the document for exact specifications by model.

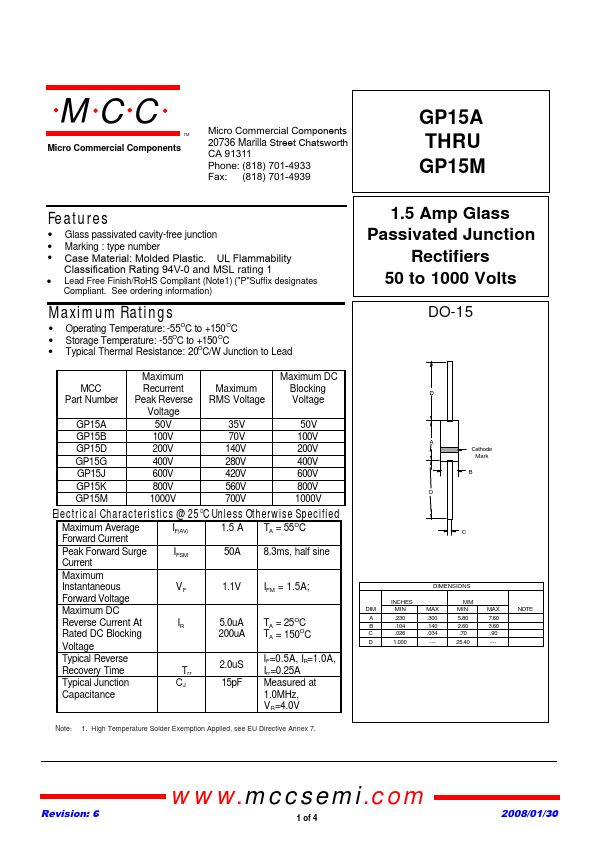

GP15B Product details
Features
- Glass passivated cavity-free junction.
- Marking : type number.
- Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0 and MSL rating 1.
- Lead Free Finish/RoHS Compliant (Note1) ("P"Suffix designates Compliant. See ordering information)
Maximum Ratings.
- Operating Temperature: -55OC to +150OC.
- Storage Temperature: -55OC to +150OC.
- Typical Thermal Resistance: 20OC/W Junction to Lead
Maximum
Maximum DC
MCC
Recurren.
