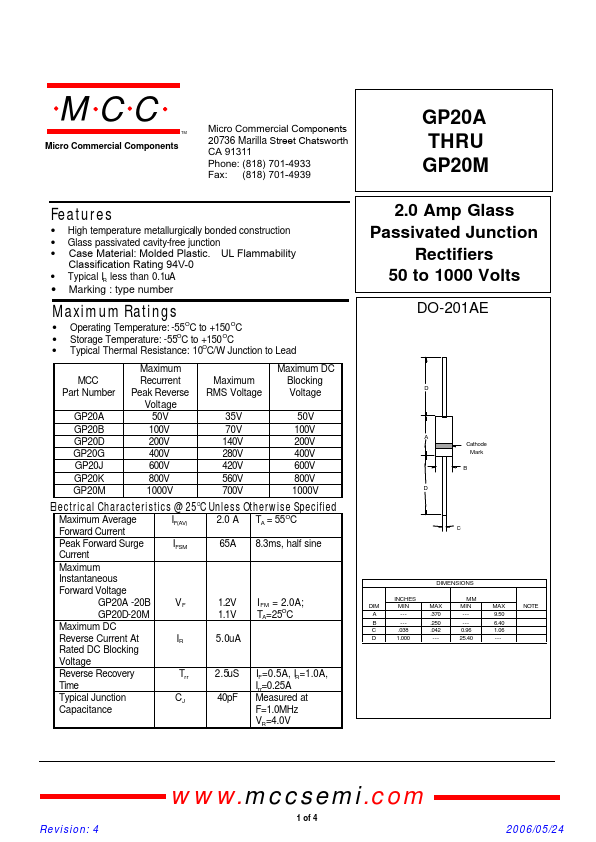

GP20A - 2.0 Amp Glass Passivated Junction Rectifiers

MCC

Datasheet Details

Part number	GP20A
Manufacturer	MCC
File Size	330.73 KB
Description	2.0 Amp Glass Passivated Junction Rectifiers
Datasheet	GP20A-MCC.pdf

High temperature metallurgically bonded construction.
Glass passivated cavity-free junction.
Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0.
Typical IR less than 0.1uA.
Marking : type number Maximum Ratings.
Operating Temperature: -55OC to +150OC.
Storage Temperature: -55OC to +150OC.
Typical Thermal Resistance: 10OC/W Junction to Lead Maximum Maximum DC MCC Recurrent Maximum Blocking Part.
