S9013 - NPN Silicon Transistors

Product Overview

MCC

📥 Download Datasheet

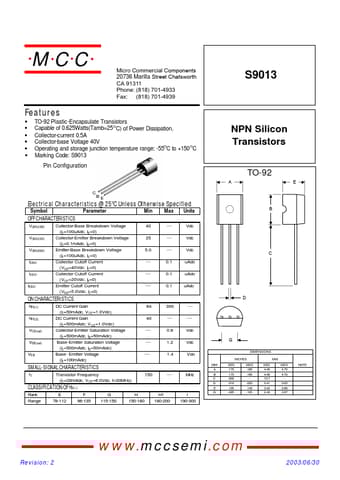

S9013 NPN Silicon Transistors by MCC - Datasheet Preview — Datasheet preview – S9013

Datasheet Details

Part number	S9013
Manufacturer	MCC
File Size	117.72 KB
Description	NPN Silicon Transistors
Datasheet	S9013 Datasheet
Additional preview pages of the S9013 datasheet.

Product details

Features

TO-92 Plastic-Encapsulate Transistors.
Capable of 0.625Watts(Tamb=25OC) of Power Dissipation.
Collector-current 0.5A.
Collector-base Voltage 40V.
Operating and storage junction temperature range: -55OC to +150OC.
Marking Code: S9013 Pin Configuration C BE Electrical Characteristics @ 25OC Unless Otherwise Specified Symbol Parameter OFF.
