S9013-H, S9013-G, NPN Silicon Transistors

MCC TM Micro Commercial Components omponents 20736 Marilla Street Chatsworth !"# $ % !"#.

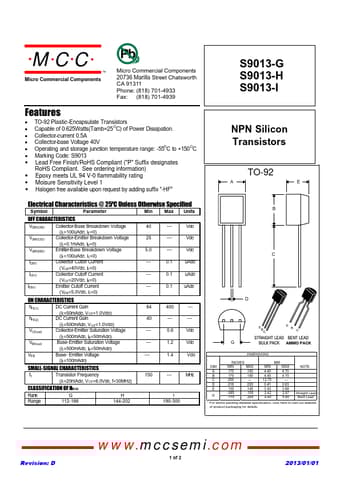

datasheet Preview Page 1 from Datasheet4u.com

S9013-G-MCC.pdf

S9013-H Datasheet Preview — This datasheet PDF includes multiple part numbers: S9013-H, S9013-G. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

S9013-H, S9013-G

Manufacturer:

MCC

File Size:

234.25 KB

Description:

NPN Silicon Transistors

Note:

This datasheet PDF includes multiple part numbers: S9013-H, S9013-G.
Please refer to the document for exact specifications by model.

Features

* TO-92 Plastic-Encapsulate Transistors
* Capable of 0.625Watts(Tamb=25OC) of Power Dissipation.
* Collector-current 0.5A
* Collector-base Voltage 40V
* Operating and storage junction temperature range: -55OC to +150OC
* Marking Code: S9013
* L

Applications

* shall assume all risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are represented on our website, harmless against all damages.
* LIFE SUPPORT
* MCC's products are not authorized for use as critical components
