DSR0.3J, DSR0.3A Surface Mount Standard Rectifiers

MDD

Description

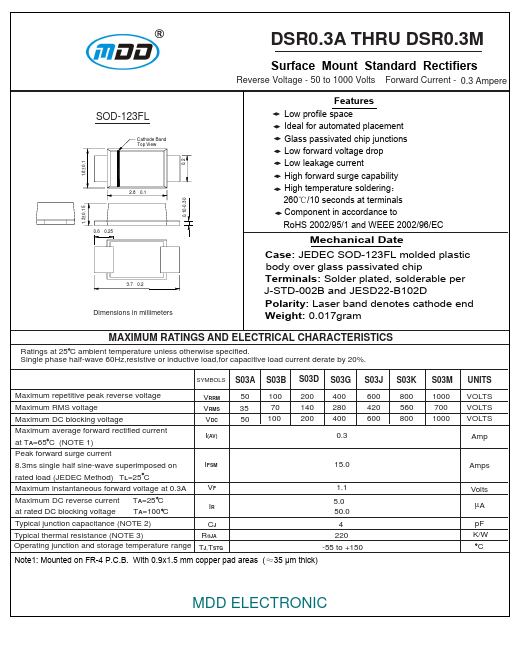

DSR0.3A THRU DSR0.3M 1.8± 0.1 SOD-123FL Cathode Band Top View 2.80.1 0.60.25 3.70.2 Dimensions in millimeters 0.10-0.30 0.2 Surface Mount Sta.

📥 Download Datasheet

DSR0.3J Datasheet Preview — This datasheet PDF includes multiple part numbers: DSR0.3J, DSR0.3A. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: DSR0.3J, DSR0.3A
Manufacturer: MDD
File Size: 385.55 KB
Datasheet: DSR0.3A-MDD.pdf
Description: Surface Mount Standard Rectifiers
Note: This datasheet PDF includes multiple part numbers: DSR0.3J, DSR0.3A.
Please refer to the document for exact specifications by model.

Features

* Low profile space Ideal for automated placement Glass passivated chip junctions Low forward voltage drop Low leakage current High forward surge capability High temperature soldering： 260℃/10 seconds at terminals Component in accordance to RoHS 2002/95/1 and WEEE 2002/96/EC Mechanical Date Case: JEDE
