MXD6235M - Dual Axis Accelerometer

MXD6235M Description

Low Profile, Low Consumption, ±2 g Dual Axis Accelerometer with Digital Outputs MXD6235M .
The MXD6235M is a low cost, dual axis accelerometer fabricated on a standard, submicron CMOS process.

MXD6235M Features

* Low power consumption: typically 2mA @ 3.0V RoHS compliant Resolution better than 1 mg Dual axis accelerometer fabricated on a monolithic CMOS IC On chip mixed signal processing No moving parts; No loose particle issues >50,000 g shock survival rating Low profile LCC package: 5mm X 5mm X 1.55mm 2.7V

MXD6235M Applications

* Security
* Gas Line/Elevator/Fatigue Sensing Information Appliances
* Computer Peripherals/PDA’s/Mouse Smart Pens/Cell Phones Gaming
* Joystick/RF Interface/Menu Selection/Tilt Sensing GPS
* electronic Compass tilt Correction Consumer
* LCD projectors, pedomet

📥 Download Datasheet

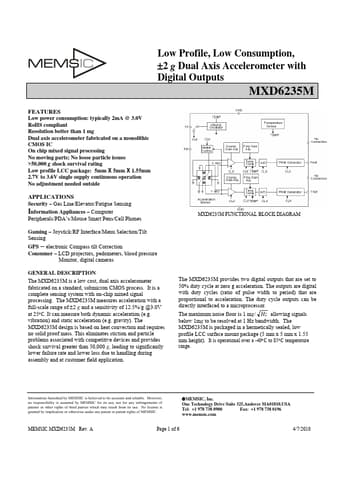

Preview of MXD6235M PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MXD6235M
Manufacturer
MEMSIC
File Size
153.10 KB
Datasheet
MXD6235M-MEMSIC.pdf
Description
Dual Axis Accelerometer
