MXD6240AU - Autonomous 8-Angle Tip-Over Sensor

MXD6240AU Description

Autonomous 8-Angle Tip-Over Sensor with High Vibration Immunity MXD6240/6241AU .
The MXD6240/6241AU is an inclination sensor with 8 built-in, pin-programmable angle thresholds.

MXD6240AU Features

* 8 Pin-programmable angle thresholds
* Single-wire digital output
* Fully autonomous- no uC required
* Built-in self-test functionality
* Small, 6-pin 3 x 3mm LCC package
* Operates from 2.7V to 5.5V Supply
* No sensor resonance
* Vibration filter: tolerates 20 g p-p

MXD6240AU Applications

* : Motorcycle Fall-Down Detection Off-Road Vehicles Jetski, watercraft Other Tip-Over Detection (Space heaters, Irons, etc) VDD P2 P1 P0 2-Axis Sensor Signal Cond’g &A/D DSP & Hyst. Delay 3-state Output Driver OUT Trim & Cal Circuits Ref & Bias Gen Clock & Timing Gen GND Figure 1. FUNCTION

📥 Download Datasheet

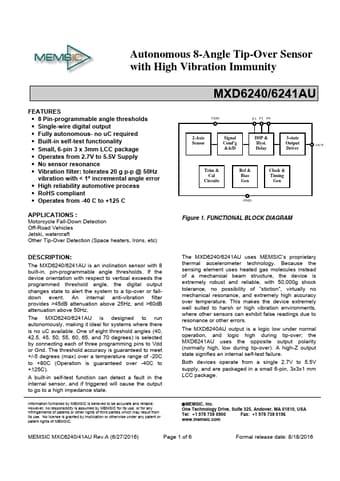

Preview of MXD6240AU PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MXD6240AU
Manufacturer
MEMSIC
File Size
455.61 KB
Datasheet
MXD6240AU-MEMSIC.pdf
Description
Autonomous 8-Angle Tip-Over Sensor
