MS14HS3P4032 STEPPING MOTOR

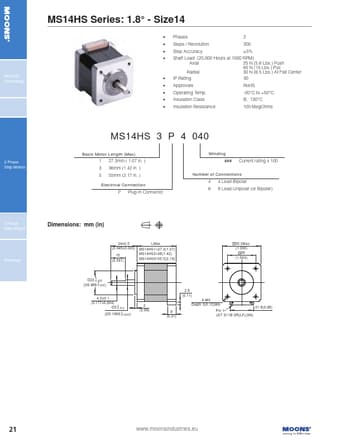

MOONS’ Technology MS14HS Series: 1.8° - Size14 Phases 2 Steps / Revolution 200 Step Accuracy ±5% Shaft Load (20,000 Hours at 1000 RPM) Axial 25 N (5.6 Lbs.) Push 65 N (15 Lbs.) Pull Radial 30 N (6.5 Lbs.) At Flat Center IP Rating 40 Approvals RoHS Operating Temp. -20°C to +50°C Insulation Class B, 130°C Insulation Resistance 100 MegOhms 2 Phas.

MS14HS3P4032 Datasheet (1.12 MB)
