MS14HS3P4075, MS14HS1P4026 Datasheet - MOONS

MS14HS3P4075 STEPPING MOTOR

MOONS’ Technology MS14HS Series: 1.8° - Size14 Phases 2 Steps / Revolution 200 Step Accuracy ±5% Shaft Load (20,000 Hours at 1000 RPM) Axial 25 N (5.6 Lbs.) Push 65 N (15 Lbs.) Pull Radial 30 N (6.5 Lbs.) At Flat Center IP Rating 40 Approvals RoHS Operating Temp. -20°C to +50°C Insulation Class B, 130°C Insulation Resistance 100 MegOhms 2 Phas.

MS14HS1P4026-MOONS.pdf

This datasheet PDF includes multiple part numbers: MS14HS3P4075, MS14HS1P4026. Please refer to the document for exact specifications by model.

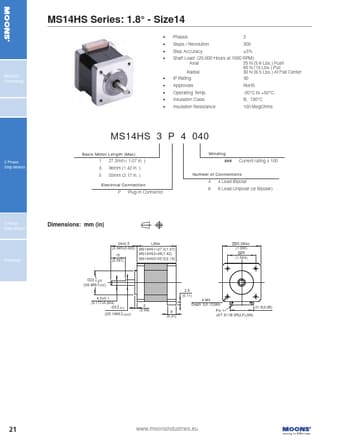

MS14HS3P4075 Datasheet Preview Page 2 MS14HS3P4075 Datasheet Preview Page 3

Datasheet Details

Part number:

MS14HS3P4075, MS14HS1P4026

Manufacturer:

MOONS

File Size:

1.12 MB

Description:

Stepping motor.

Note:

This datasheet PDF includes multiple part numbers: MS14HS3P4075, MS14HS1P4026.
Please refer to the document for exact specifications by model.
