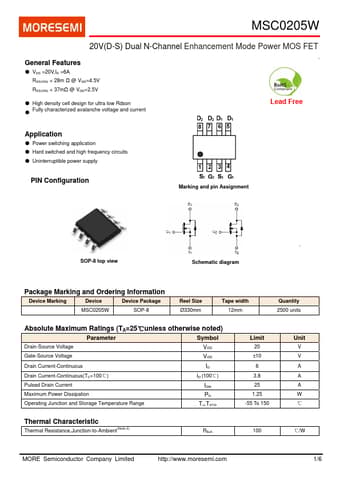

MSC0205W Datasheet, Mosfet, MORESEMI

MSC0205W Features

• Mosfet
• VDS =20V,ID =6A RDS(ON) < 28m Ω @ VGS=4.5V RDS(ON) < 37mΩ @ VGS=2.5V
• High density cell design for ultra low Rdson
• Fully characterized avalanche voltage and

PDF File Details

Part number:

MSC0205W

Manufacturer:

MORESEMI

File Size:

461.79kb

Download:

📄 Datasheet

Description:

Dual n-channel mosfet.
