SYS321000ZK-025, SYS321000LK-012 1M x 32 SRAM MODULE

SYS321000ZK-025 Description

www.DataSheet4U.com 1M x 32 SRAM MODULE SYS321000ZK/LK - 012/015/020/025 Issue 1.5 : December 1998 .
The SYS321000ZK/LK is a industry standard plastic 32Mbit Static RAM Module housed in a 72 pin plastic SIMM & ZIP package organised as 1M x 32.

SYS321000ZK-025 Features

* Access Times of 12/15/20/25 ns. 72 Pin ZIP, SIMM package 5 Volt Supply ± 10%. Low Power Dissipation: Average (min cycle) Standby -L Version (CMOS)
* Completely Static Operation. On-board Supply Decoupling Capacitors. Equivalent to EDI part EDI8F321024C, IDT part IDT7MP412

SYS321000ZK-025 Applications

* where alternative modules can be interchanged.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SYS321000ZK-025, SYS321000LK-012. Please refer to the document for exact specifications by model.

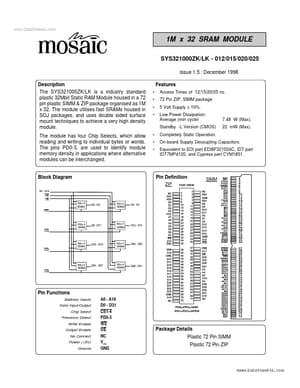

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SYS321000ZK-025, SYS321000LK-012
Manufacturer
MOSAIC
File Size
171.15 KB
Datasheet
SYS321000LK-012_MOSAIC.pdf
Description
1M x 32 SRAM MODULE
Note
This datasheet PDF includes multiple part numbers: SYS321000ZK-025, SYS321000LK-012.
Please refer to the document for exact specifications by model.
