SYS32512LK-010 512 K x 32 Static RAM

Description

www.DataSheet4U.com 512 K x 32 Static RAM SYS32512ZK/LK - 010/012/015 Issue 5.0 June 1999 .
The SYS32512 is a 512K x 8 SRAM module in a ZIP (ZK) or SIMM (LK & LKXA) packages with access times of 12 and 15ns, with 10ns parts under development.

📥 Download Datasheet

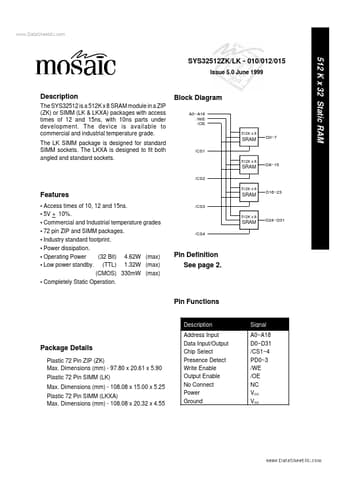

SYS32512LK-010 Datasheet Preview — Preview of SYS32512LK-010 PDF

Datasheet Specifications

Part number: SYS32512LK-010
Manufacturer: MOSAIC
File Size: 297.30 KB
Datasheet: SYS32512LK-010_MOSAIC.pdf
Description: 512 K x 32 Static RAM

Features

* Access times of 10, 12 and 15ns.
* 5V + 10%.
* Commercial and Industrial temperature grades
* 72 pin ZIP and SIMM packages.
* Industry standard footprint.
* Power dissipation.
* Operating Power (32 Bit) 4.62W (max)
* Low power standby

Applications

* minimization or elimination of bus contention conditions is necessary during read and write cycle. 9. /CS=/CS1~4 PAGE 6 Issue 5.0 June 1999 www. DataSheet4U. com Write Cycle 1 (/OE = Clock) tWC Address tAW /OE tCW(3) /CS tWR(5) tAS(4) /WE tWP(2) tDW High Z Data In tOHZ(6) High Z(8) Data Out Va
