MP2158AGQH - Synchronous Step-Down Converter

Product Overview

MPS

📥 Download Datasheet

MP2158AGQH Synchronous Step-Down Converter by MPS - Datasheet Preview — Datasheet preview – MP2158AGQH

Datasheet Details

Part number	MP2158AGQH
Manufacturer	MPS
File Size	463.92 KB
Description	Synchronous Step-Down Converter
Datasheet	MP2158AGQH Datasheet
Note	This datasheet PDF includes multiple part numbers: MP2158AGQH, MP2158A. Please refer to the document for exact specifications by model.

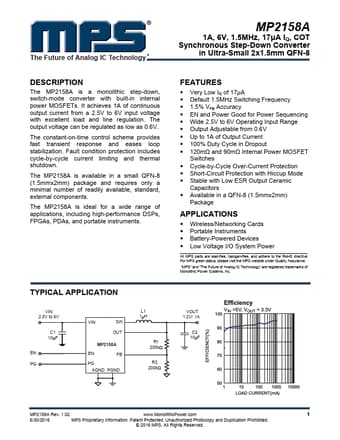

Additional preview pages of the MP2158AGQH datasheet.

Product details

Description

The MP2158A is a monolithic step-down, switch-mode converter with built-in internal power MOSFETs.

Features

Very Low IQ of 17μA.
Default 1.5MHz Switching Frequency.
1.5% VFB Accuracy.
EN and Power Good for Power Sequencing.
Wide 2.5V to 6V Operating Input Range.
Output Adjustable from 0.6V.
Up to 1A of Output Current.
100% Duty Cycle in Dropout.
120mΩ and 90mΩ Internal Power MOSFET Switches.
Cycle-by-Cycle Over-Current Protection.
Short-Circuit Protection with Hiccup Mode.
Stable with Low ESR Output Ceramic Capacitors.
Available in a QF.
