MP6900DJ Datasheet - MPS

MP6900DJ Fast Turn-off Intelligent Controller

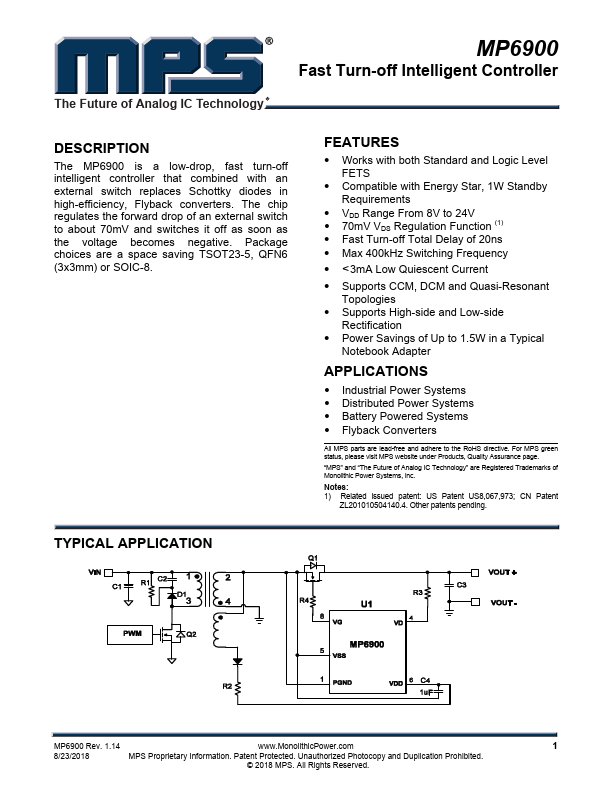

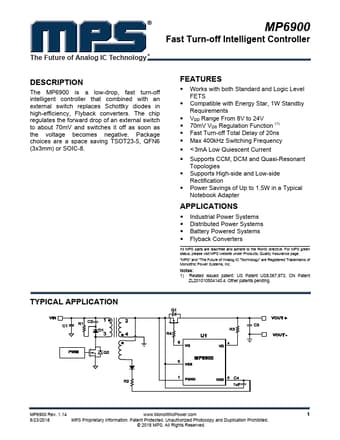

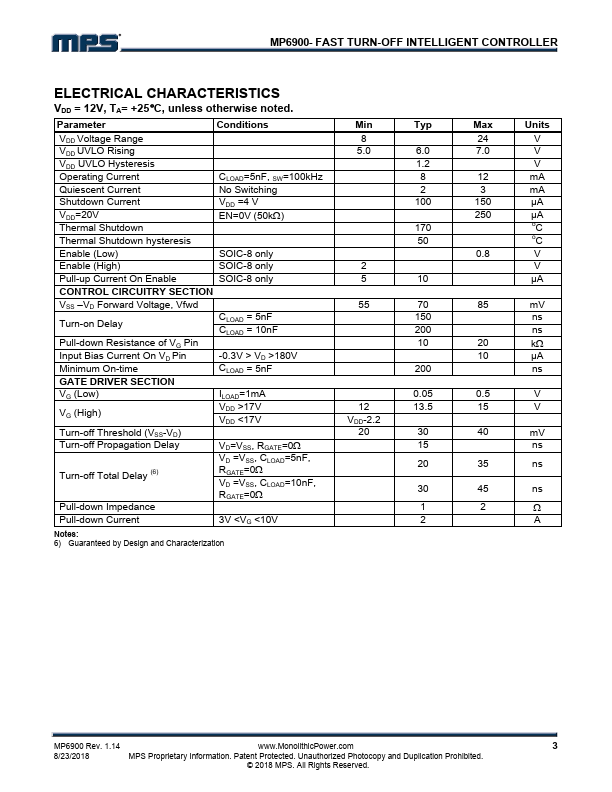

The MP6900 is a low-drop, fast turn-off intelligent controller that combined with an external switch replaces Schottky diodes in high-efficiency, Flyback converters. The chip regulates the forward drop of an external switch to about 70mV and switches it off as soon as the voltage becomes negative. P.

MP6900DJ Features

* Works with both Standard and Logic Level FETS

* Compatible with Energy Star, 1W Standby Requirements

* VDD Range From 8V to 24V

* 70mV VDS Regulation Function (1)

* Fast Turn-off Total Delay of 20ns

* Max 400kHz Switching Frequency

MP6900DJ Datasheet (363.18 KB)
