MP6900DQ, MP6900 Datasheet - MPS

MP6900DQ - Fast Turn-off Intelligent Controller

The MP6900 is a low-drop, fast turn-off intelligent controller that combined with an external switch replaces Schottky diodes in high-efficiency, Flyback converters.

The chip regulates the forward drop of an external switch to about 70mV and switches it off as soon as the voltage becomes negative.

P

MP6900DQ Features

* Works with both Standard and Logic Level FETS

* Compatible with Energy Star, 1W Standby Requirements

* VDD Range From 8V to 24V

* 70mV VDS Regulation Function (1)

* Fast Turn-off Total Delay of 20ns

* Max 400kHz Switching Frequency

MP6900-MPS.pdf

This datasheet PDF includes multiple part numbers: MP6900DQ, MP6900. Please refer to the document for exact specifications by model.

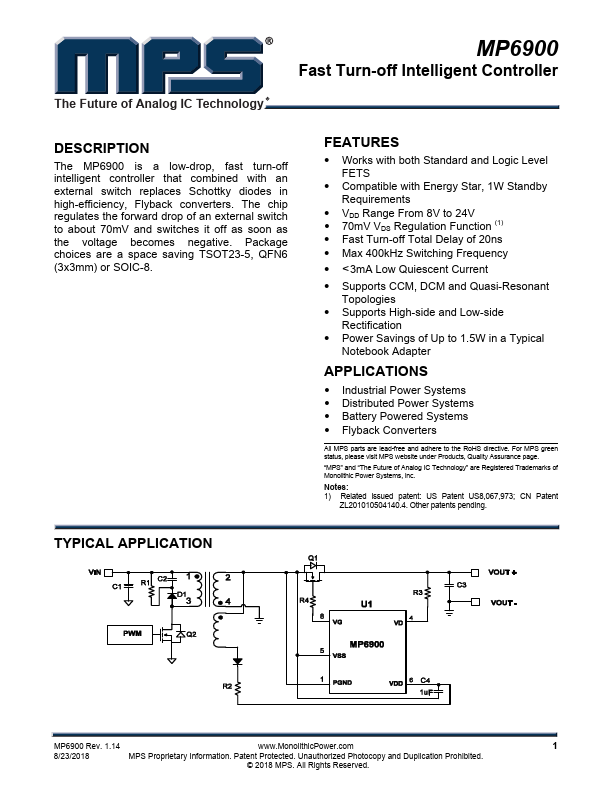

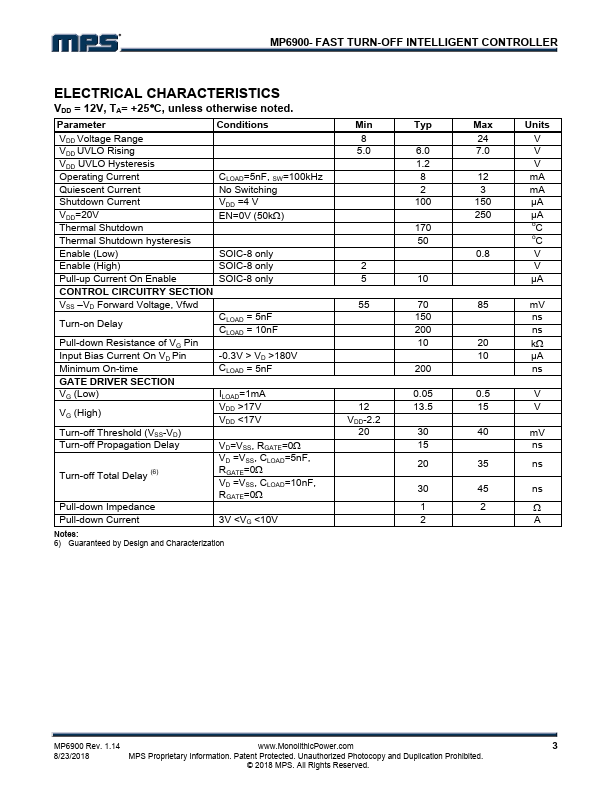

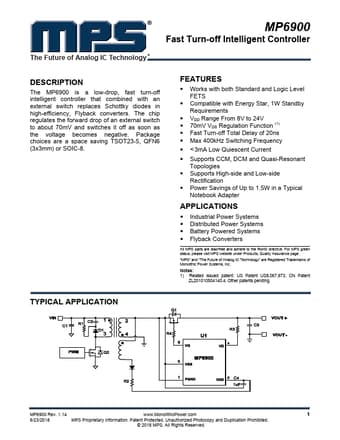

MP6900DQ Datasheet Preview Page 2 MP6900DQ Datasheet Preview Page 3

Datasheet Details

Part number:

MP6900DQ, MP6900

Manufacturer:

MPS

File Size:

363.18 KB

Description:

Fast turn-off intelligent controller.

Note:

This datasheet PDF includes multiple part numbers: MP6900DQ, MP6900.
Please refer to the document for exact specifications by model.
