MP6901DS

Fast Turn-off Intelligent Controller

MP6901DS Features

* Works with both Standard and Logic Level FETS

* Compatible with Energy Star, 1W Standby Requirements

* VDD Range From 8V to 24V

* 70mV VDS Regulation Function (1)

* Fast Turn-off Total Delay of 20ns

* Max 400kHz Switching Frequency

MP6901DS General Description

The MP6901 is a Low-Drop Diode Emulator IC that, combined with an external switch replaces Schottky diodes in high-efficiency, Flyback converters. The chip regulates the forward drop of an external switch to about 70mV and switches it off as soon as the voltage becomes negative. Package choices are .

MP6901DS Datasheet (358.22 KB)

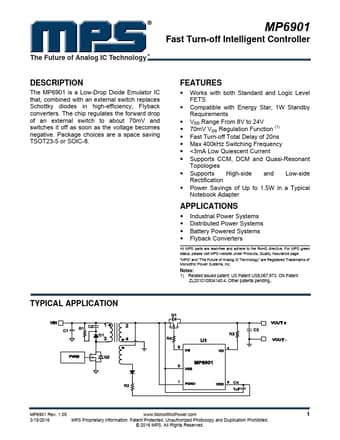

Preview of MP6901DS PDF

Datasheet Details

Part number:

MP6901DS

Manufacturer:

MPS

File Size:

358.22 KB

Description:

Fast turn-off intelligent controller.
