MP6901DJ - Fast Turn-off Intelligent Controller

Product Overview

MPS

📥 Download Datasheet

MP6901DJ Fast Turn-off Intelligent Controller by MPS - Datasheet Preview — Datasheet preview – MP6901DJ

Datasheet Details

Part number	MP6901DJ
Manufacturer	MPS
File Size	358.22 KB
Description	Fast Turn-off Intelligent Controller
Datasheet	MP6901DJ Datasheet
Note	This datasheet PDF includes multiple part numbers: MP6901DJ, MP6901. Please refer to the document for exact specifications by model.

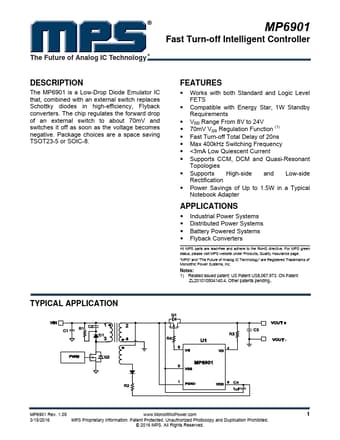

Additional preview pages of the MP6901DJ datasheet.

Product details

Description

The MP6901 is a Low-Drop Diode Emulator IC that, combined with an external switch replaces Schottky diodes in high-efficiency, Flyback converters.

Features

Works with both Standard and Logic Level FETS.
Compatible with Energy Star, 1W Standby Requirements.
VDD Range From 8V to 24V.
70mV VDS Regulation Function (1).
Fast Turn-off Total Delay of 20ns.
Max 400kHz Switching Frequency.
