MP6900DS, MP6900 - Fast Turn-off Intelligent Controller

MPS

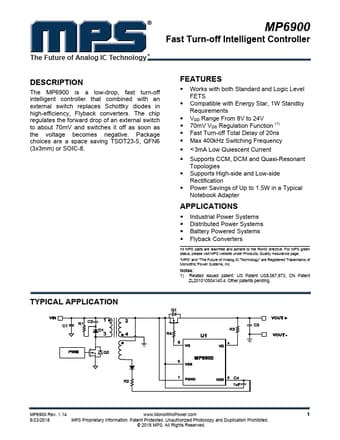

MP6900DS Datasheet Preview — This datasheet PDF includes multiple part numbers: MP6900DS, MP6900. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	MP6900DS, MP6900
Manufacturer	MPS
File Size	363.18 KB
Description	Fast Turn-off Intelligent Controller
Datasheet	MP6900-MPS.pdf
Note	This datasheet PDF includes multiple part numbers: MP6900DS, MP6900. Please refer to the document for exact specifications by model.

MP6900DS Product details

Description

The MP6900 is a low-drop, fast turn-off intelligent controller that combined with an external switch replaces Schottky diodes in high-efficiency, Flyback converters.

Features

Works with both Standard and Logic Level FETS.
Compatible with Energy Star, 1W Standby Requirements.
VDD Range From 8V to 24V.
70mV VDS Regulation Function (1).
Fast Turn-off Total Delay of 20ns.
Max 400kHz Switching Frequency.
