MP6925A Synchronous Rectifier

The MP6925A is a dual, fast turn-off, intelligent rectifier for synchronous rectification in LLC resonant converters. The IC drives two N-channel MOSFETs and regulates their forward voltage drop to VFWD (about 45mV). The IC turns the MOSFETs off before the switching current goes negative. The MP6925.

MP6925A Features

* Works with Standard and Logic Level MOSFETs

* Compatible with Energy Star

* Fast Turn-Off Total Delay of 35ns

* Wide 4.2V to 35V VDD Operating Range

* 175µA Low Quiescent Current in Light-Load Mode

* Supports CCM, CrCM, and DCM Operation

* Supports High-Side and Low-Sid

MP6925A Datasheet (1.20 MB)

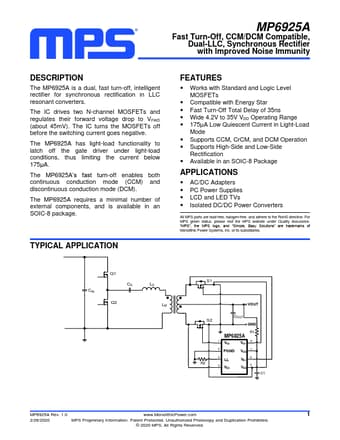

MP6925A Datasheet Preview — Preview of MP6925A PDF

Datasheet Details

Part number:

MP6925A

Manufacturer:

MPS

File Size:

1.20 MB

Description:

Synchronous rectifier.
