MP6925GS, MP6925 Datasheet - MPS

MP6925GS - Dual-LLC Synchronous Rectifier

The MP6925 is a dual, fast turn-off, intelligent rectifier for synchronous rectification in LLC resonant converters.

The IC drives two N-channel MOSFETs, regulates their forward voltage drop to Vfwd (about 29mV), and turns the MOSFETs off before the switching current goes negative.

The MP6925 has a

MP6925GS Features

* Works with Standard and Logic Level MOSFETs

* Compatible with Energy Star

* Fast Turn-Off Total Delay of 35ns

* Wide 4.2V to 35V VDD Operating Range

* 175µA Low Quiescent Current in Light-Load Mode

* Supports CCM, CrCM, and DCM Operation

* Supports High-Side and Low-Sid

MP6925-MPS.pdf

This datasheet PDF includes multiple part numbers: MP6925GS, MP6925. Please refer to the document for exact specifications by model.

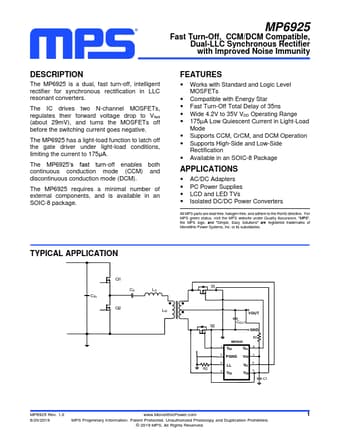

MP6925GS Datasheet Preview Page 2 MP6925GS Datasheet Preview Page 3
