MP6925AGS, MP6925A - Synchronous Rectifier

MPS

📥 Download Datasheet

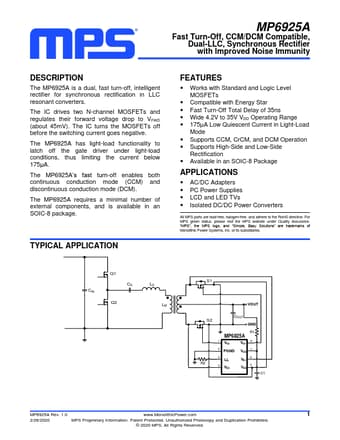

MP6925AGS Datasheet Preview — This datasheet PDF includes multiple part numbers: MP6925AGS, MP6925A. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MP6925AGS, MP6925A
Manufacturer	MPS
File Size	1.20 MB
Description	Synchronous Rectifier
Datasheet	MP6925A-MPS.pdf
Note	This datasheet PDF includes multiple part numbers: MP6925AGS, MP6925A. Please refer to the document for exact specifications by model.

MP6925AGS Product details

Description

The MP6925A is a dual, fast turn-off, intelligent rectifier for synchronous rectification in LLC resonant converters.

Features

Works with Standard and Logic Level MOSFETs.
Compatible with Energy Star.
Fast Turn-Off Total Delay of 35ns.
Wide 4.2V to 35V VDD Operating Range.
175µA Low Quiescent Current in Light-Load Mode.
Supports CCM, CrCM, and DCM Operation.
Supports High-Side and Low-Side Rectification.
Available in an SOIC-8 Package.
