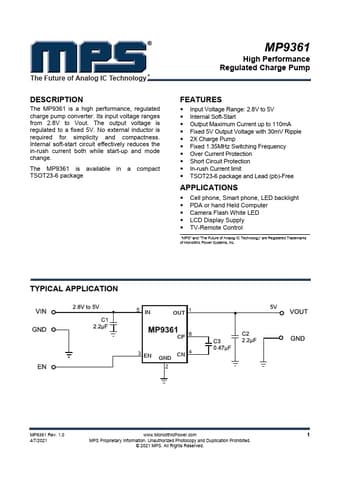

MP9361DJ, MP9361 - High Performance Regulated Charge Pump

MP9361DJ Description

The Future of Analog IC Technology .
The MP9361 is a high performance, regulated charge pump converter.

MP9361DJ Features

* Input Voltage Range: 2.8V to 5V
* Internal Soft-Start
* Output Maximum Current up to 110mA
* Fixed 5V Output Voltage with 30mV Ripple
* 2X Charge Pump
* Fixed 1.35MHz Switching Frequency
* Over Current Protection
* Short Circuit Protection
* In-rush Current limi

MP9361DJ Applications

* Cell phone, Smart phone, LED backlight
* PDA or hand Held Computer
* Camera Flash White LED
* LCD Display Supply
* TV-Remote Control “MPS” and “The Future of Analog IC Technology” are Registered Trademarks of Monolithic Power Systems, Inc. TYPICAL APPLICATION 5 IN OUT 1 CP

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MP9361DJ, MP9361. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MP9361DJ, MP9361
Manufacturer
MPS
File Size
330.05 KB
Datasheet
MP9361-MPS.pdf
Description
High Performance Regulated Charge Pump
Note
This datasheet PDF includes multiple part numbers: MP9361DJ, MP9361.
Please refer to the document for exact specifications by model.
