MPQ20051 - 1A Linear Regulator

Datasheet Summary

Description

The MPQ20051 is a low-dropout linear regulator that supplies up to 1A current with a 140mV dropout voltage.

The externally-adjustable output voltage has a range of 0.8V to 5V from an input voltage of 2.5V to 5.5V.

Features

  • include low-power shutdown, and shortcircuit and thermal protection. The MPQ20051 is available in 3mm x 3mm 8-pin QFN package. MPQ20051 Low Noise, High PSRR, 1A Linear Regulator AEC-Q100 Qualified.

📥 Download Datasheet

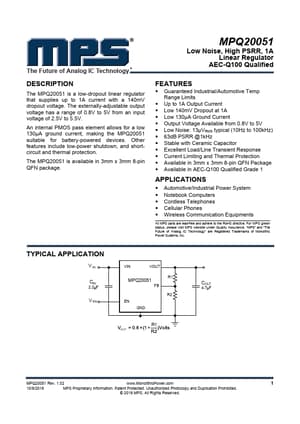

Datasheet preview – MPQ20051

Datasheet Details

Part number MPQ20051
Manufacturer MPS
File Size 529.33 KB
Description 1A Linear Regulator
Datasheet download datasheet MPQ20051 Datasheet
