MPQ20051DQ-AEC1 - 1A Linear Regulator

This page provides the datasheet information for the MPQ20051DQ-AEC1, a member of the MPQ20051 1A Linear Regulator family.

Datasheet Summary

Description

The MPQ20051 is a low-dropout linear regulator that supplies up to 1A current with a 140mV dropout voltage.

The externally-adjustable output voltage has a range of 0.8V to 5V from an input voltage of 2.5V to 5.5V.

Features

  • include low-power shutdown, and shortcircuit and thermal protection. The MPQ20051 is available in 3mm x 3mm 8-pin QFN package. MPQ20051 Low Noise, High PSRR, 1A Linear Regulator AEC-Q100 Qualified.

📥 Download Datasheet

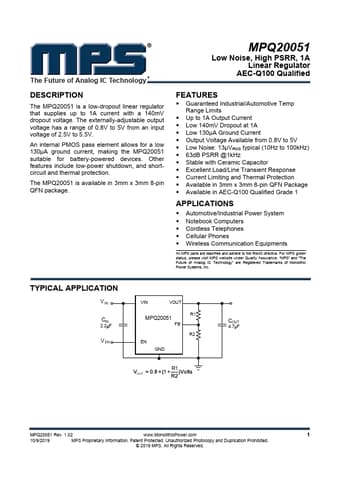

Datasheet preview – MPQ20051DQ-AEC1

Datasheet Details

Part number MPQ20051DQ-AEC1
Manufacturer MPS
File Size 529.33 KB
Description 1A Linear Regulator
Datasheet download datasheet MPQ20051DQ-AEC1 Datasheet
Additional preview pages of the MPQ20051DQ-AEC1 datasheet.

📁 Similar Datasheet

  • MPQ2221 - NPN Transistor (Motorola)
  • MPQ2222 - QUAD TRANSISTORS (Central)
  • MPQ2222 - Quad Transistors (Motorola Semiconductor)
  • MPQ2222A - Quad Transistors (Motorola Semiconductor)
  • MPQ2222A - QUAD TRANSISTORS (Central Semiconductor)
  • MPQ2369 - NPN Silicon Quad Transistor (Central Semiconductor)
  • MPQ2369 - QUAD SWITCHING TRANSISTOR (Motorola)
  • MPQ2483 - QUAD AMPLIFIER TRANSISTOR (Motorola)
  • MPQ2484 - QUAD AMPLIFIER TRANSISTOR (Motorola)
  • MPQ2906 - PNP SILICON QUAD TRANSISTOR (Central Semiconductor)
Other Datasheets by MPS

Full PDF Text Transcription

Click to expand full text
The Future of Analog IC Technology DESCRIPTION The MPQ20051 is a low-dropout linear regulator that supplies up to 1A current with a 140mV dropout voltage. The externally-adjustable output voltage has a range of 0.8V to 5V from an input voltage of 2.5V to 5.5V. An internal PMOS pass element allows for a low 130μA ground current, making the MPQ20051 suitable for battery-powered devices. Other features include low-power shutdown, and shortcircuit and thermal protection. The MPQ20051 is available in 3mm x 3mm 8-pin QFN package. MPQ20051 Low Noise, High PSRR, 1A Linear Regulator AEC-Q100 Qualified FEATURES  Guaranteed Industrial/Automotive Temp Range Limits  Up to 1A Output Current  Low 140mV Dropout at 1A  Low 130μA Ground Current  Output Voltage Available from 0.
