MPQ2483ADQ, MPQ2483A 2.5A Programmable Frequency LED Driver

MPS

Description

The Future of Analog IC Technology .
The MPQ2483A is a 55V LED driver suitable for either step-down or inverting step-up and stepdown applications.

📥 Download Datasheet

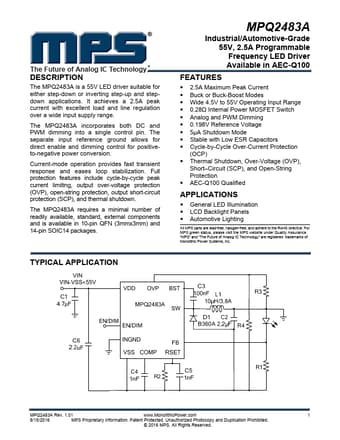

MPQ2483ADQ Datasheet Preview — This datasheet PDF includes multiple part numbers: MPQ2483ADQ, MPQ2483A. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: MPQ2483ADQ, MPQ2483A
Manufacturer: MPS
File Size: 599.01 KB
Datasheet: MPQ2483A-MPS.pdf
Description: 2.5A Programmable Frequency LED Driver
Note: This datasheet PDF includes multiple part numbers: MPQ2483ADQ, MPQ2483A.
Please refer to the document for exact specifications by model.

Features

* include cycle-by-cycle peak current limiting, output over-voltage protection (OVP), open-string protection, output short-circuit protection (SCP), and thermal shutdown. The MPQ2483A requires a minimal number of readily available, standard, external components and is available in 10-pin QFN (3mmx3mm)

Applications

* It achieves a 2.5A peak current with excellent load and line regulation over a wide input supply range. The MPQ2483A incorporates both DC and PWM dimming into a single control pin. The separate input reference ground allows for direct enable and dimming control for positiveto-negative power convers
