MPQ3364 - Maximum 150mA/Ch Boost WLED Driver

MPS

📥 Download Datasheet

MPQ3364 Datasheet Preview — Preview of MPQ3364 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MPQ3364
Manufacturer	MPS
File Size	1.15 MB
Description	Maximum 150mA/Ch Boost WLED Driver
Datasheet	MPQ3364-MPS.pdf

MPQ3364 Product details

Description

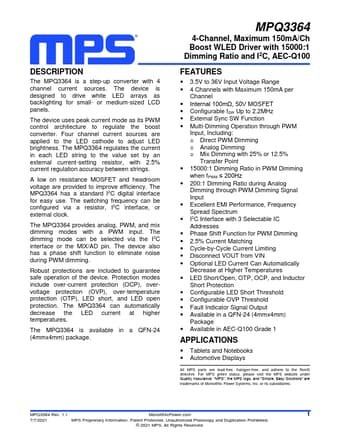

The MPQ3364 is a step-up converter with 4 channel current sources.

Features

3.5V to 36V Input Voltage Range.
4 Channels with Maximum 150mA per Channel.
Internal 100mΩ, 50V MOSFET.
Configurable fSW Up to 2.2MHz.
External Sync SW Function.
Multi-Dimming Operation through PWM Input, Including: o Direct PWM Dimming o Analog Dimming o Mix Dimming with 25% or 12.5% Transfer Point.
15000:1 Dimming Ratio in PWM Dimming when fPWM ≤ 200Hz.
200:1 Dimming Ratio during Analog Dimming through PWM Dimming Signal Input.
Excellent EMI Perfor.
