MPQ6400

Low Quiescent Current Programmable-Delay Voltage Supervisor

MPQ6400 Features

* a precision reference to achieve ±1% threshold accuracy. The reset delay time is set by an external capacitor connected between CDELAY and GND, allowing the user to select any delay time between 2.1ms and 10s. The 380ms delay time is set by connecting the CDELAY pin to VCC. The 24ms delay time is se

MPQ6400 General Description

The MPQ6400 is a microprocessor (µP) supervisory circuit which can monitor and provide a reset function for system voltages from 0.4V. When either the SENSE voltage falls below its threshold (VIT) or the voltage of manual reset (MR ) is pulled to a logic low, the RESET signal will be asserted. Fixed.

MPQ6400 Datasheet (684.88 KB)

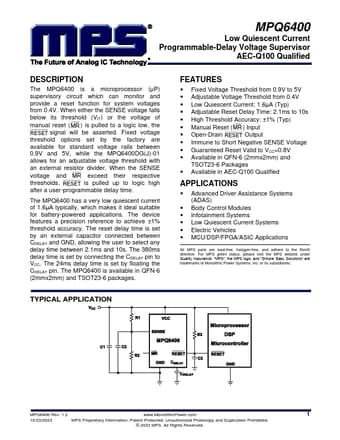

Preview of MPQ6400 PDF

Datasheet Details

Part number:

MPQ6400

Manufacturer:

MPS

File Size:

684.88 KB

Description:

Low quiescent current programmable-delay voltage supervisor.
