MPQ6411

Windowed Watchdog Timer

MPQ6411 Features

* Windowed Watchdog

* Power-On Reset during Power-Up and Under Voltage

* Programmable Short Window Mode or Long Window Mode

* Watchdog Disable Function

* Low Shutdown Mode Current

* SOIC8 Package

* Available in AEC-Q100 Grade 1 APPLICATIONS

* Automotive Systems

MPQ6411 General Description

The MPQ6411 is a windowed watchdog timer. It is used to reset and monitor the microcontroller. In normal operation, the MCU sends a trigger signal to the MPQ6411 in a defined time window cyclically. A missing or fault trigger signal causes the watchdog to reset the MCU. The MPQ6411 provides a reset .

MPQ6411 Datasheet (313.02 KB)

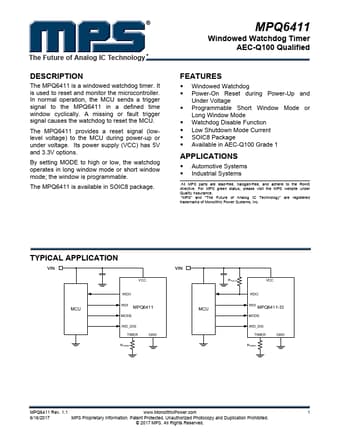

Preview of MPQ6411 PDF

Datasheet Details

Part number:

MPQ6411

Manufacturer:

MPS

File Size:

313.02 KB

Description:

Windowed watchdog timer.
