MPQ6411GS, MPQ6411 Windowed Watchdog Timer

MPQ6411GS Description

The Future of Analog IC Technology .
The MPQ6411 is a windowed watchdog timer.

MPQ6411GS Features

* Windowed Watchdog
* Power-On Reset during Power-Up and Under Voltage
* Programmable Short Window Mode or Long Window Mode
* Watchdog Disable Function
* Low Shutdown Mode Current
* SOIC8 Package

MPQ6411GS Applications

* Automotive Systems
* Industrial Systems All MPS parts are lead-free, halogen-free, and adhere to the RoHS directive. For MPS green status, please visit the MPS website under Quality Assurance. “MPS” and “The Future of Analog IC Technology” are registered trademarks of Monolithic Power Syst

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MPQ6411GS, MPQ6411. Please refer to the document for exact specifications by model.

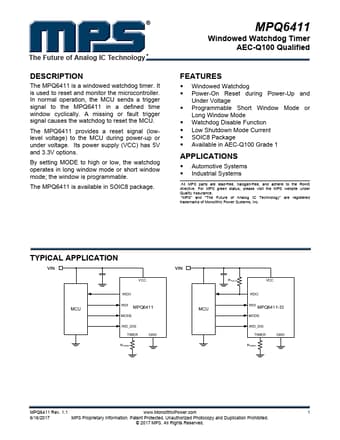

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MPQ6411GS, MPQ6411
Manufacturer
MPS
File Size
313.02 KB
Datasheet
MPQ6411-MPS.pdf
Description
Windowed Watchdog Timer
Note
This datasheet PDF includes multiple part numbers: MPQ6411GS, MPQ6411.
Please refer to the document for exact specifications by model.
