MT60P25S - P-Channel MOSFET

MT60P25S Description

MT60P25S 3&KDQQHO(QKDQF HPHQW0R GH)LHOG  (IIHFW7UDQVLVWRU Product Summary ‡ VDS = - 60V  ‡ I D = - 40A(VGS= -10V.

MT60P25S Features

* @VGS= - 4.5V @VGS= -10V ‡ Advanced Trench Process Technology. ‡ High Density Cell Design for Ultra Low On-Resistance. ‡ Lead free product is acquired. ‡ RoHS Compliant. $SSOLFDWLRQV D ‡ High side switch for full bridge converter ‡ DC/DC converter for LCD display Absolute Maximum Ratings (TA =

📥 Download Datasheet

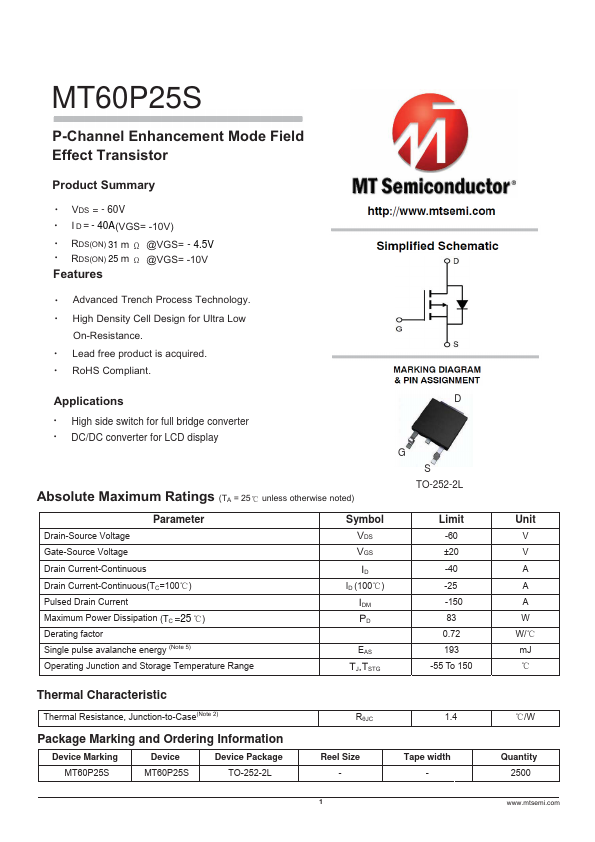

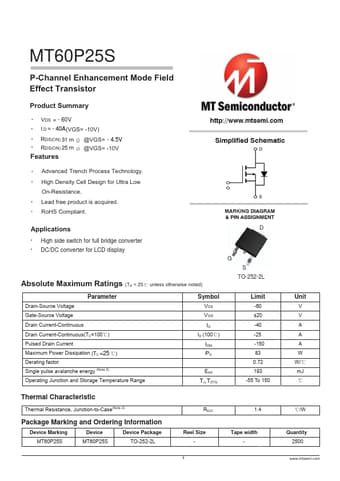

Preview of MT60P25S PDF

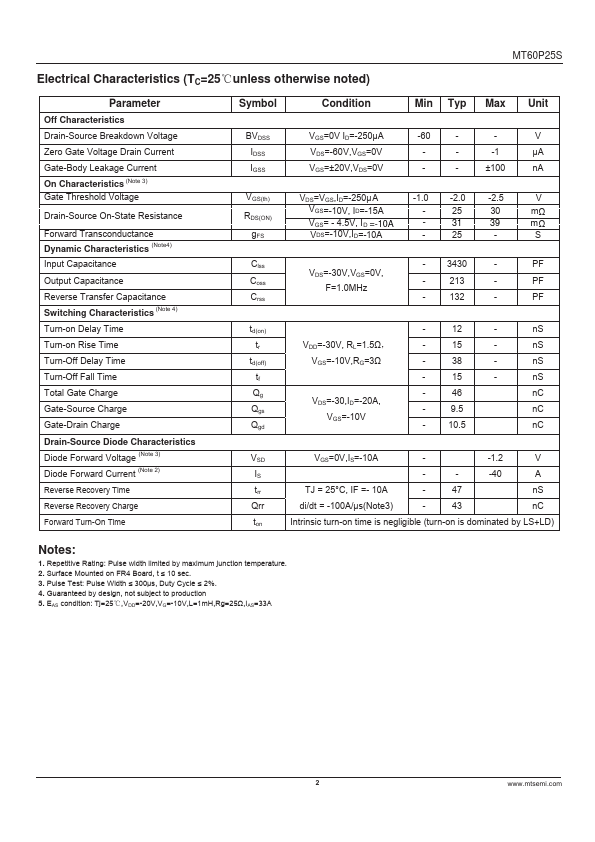

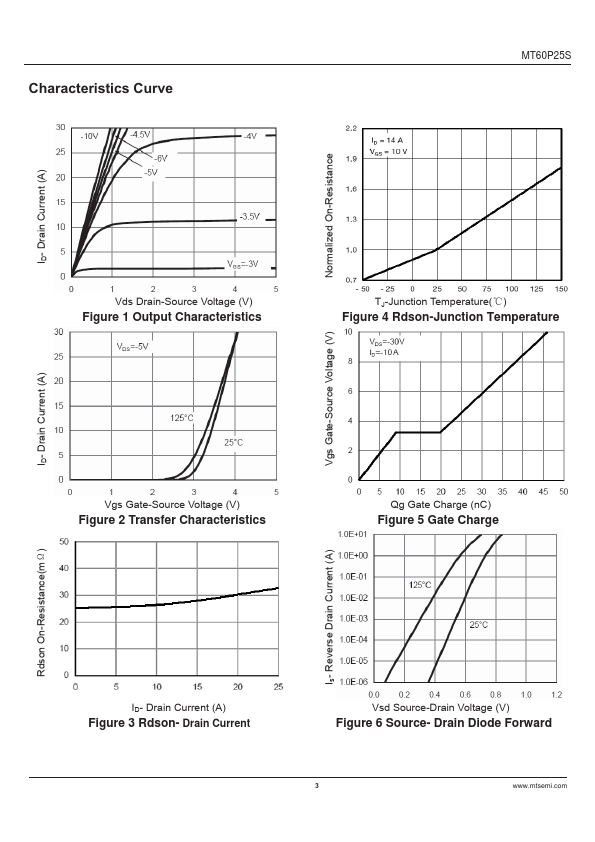

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MT60P25S
Manufacturer
MT Semiconductor
File Size
540.49 KB
Datasheet
MT60P25S-MTSemiconductor.pdf
Description
P-Channel MOSFET
