27C800

8M-BIT [1M x8] CMOS EPROM

27C800 Features

* 1M x 8 organization Single +5V power supply +12.5V programming voltage Fast access time: 100/120/150 ns Totally static operation Completely TTL compatible

* Operating current: 60mA

* Standby current: 100uA

* Packa

27C800 Datasheet (931.87 KB)

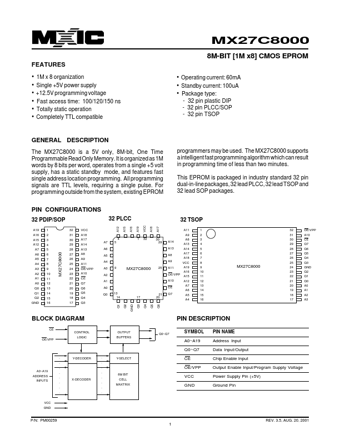

Preview of 27C800 PDF

Datasheet Details

Part number:

27C800

Manufacturer:

Macronix International

File Size:

931.87 KB

Description:

8m-bit [1m x8] cmos eprom.
