27C1024 - 1M-BIT [128K x 8/64K x 16] CMOS EPROM

Macronix International

Datasheet Details

Part number	27C1024
Manufacturer	Macronix International
File Size	965.50 KB
Description	1M-BIT [128K x 8/64K x 16] CMOS EPROM

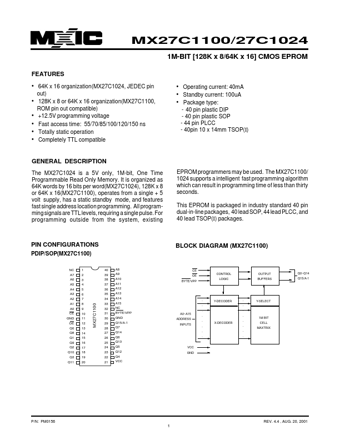

Datasheet	27C1024_MacronixInternational.pdf

The MX27C1024 is a 5V only, 1M-bit, One Time Programmable Read Only Memory.

64K x 16 organization(MX27C1024, JEDEC pin.
out) 128K x 8 or 64K x 16 organization(MX27C1100, ROM pin out compatible) +12.5V programming voltage Fast access time: 55/70/85/100/120/150 ns Totally static operation Completely TTL compatible.
Operating current: 40mA.
Standby current: 100uA.
Package type: - 40 pin plastic DIP - 40 pin plastic SOP - 44 pin PLCC - 40pin 10 x 14mm TSOP(I).
