MBQ40T120FES - High speed FieldStop Trench IGBT

MagnaChip

📥 Download Datasheet

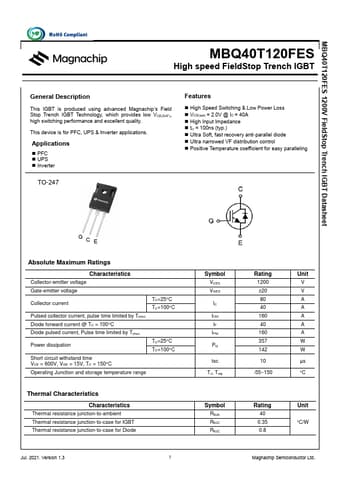

MBQ40T120FES Datasheet Preview — Preview of MBQ40T120FES PDF

Datasheet Details

Part number: MBQ40T120FES
Manufacturer: MagnaChip
File Size: 1.35 MB
Datasheet: MBQ40T120FES-MagnaChip.pdf
Description: High speed FieldStop Trench IGBT

MBQ40T120FES Product details

Description

This IGBT is produced using advanced Magnachip’s Field Stop Trench IGBT Technology, which provides low VCE(SAT), high switching performance and excellent quality. PFC UPS Inverter

Features

High Speed Switching & Low Power Loss.
VCE(sat) = 2.0V @ IC = 40A.
High Input Impedance.
trr = 100ns (typ. ).
Ultra Soft, fast recovery anti-parallel diode.
Ultra narrowed VF distribution control.
Positive Temperature coefficient for easy paralleling TO-247 GCE Absolute Maximum Ratings Characteristics Collector-emitter voltage Gate-emitter voltage Collector current Pulsed collector current, pulse time limited by Tjmax Diode forward current @ TC = 100°C Diod.
