MBQ40T120FDS - High speed FieldStop Trench IGBT

Datasheet Summary

Description

This IGBT is produced using advanced MagnaChip’s Field Stop Trench IGBT Technology, which provides low VCE(SAT), high switching performance and excellent quality.

This device is for PFC, UPS & Inverter applications.

Features

  • High Speed Switching & Low Power Loss.
  • VCE(sat) = 2.0V @ IC = 40A.
  • High Input Impedance.
  • trr = 100ns (typ. ).

📥 Download Datasheet

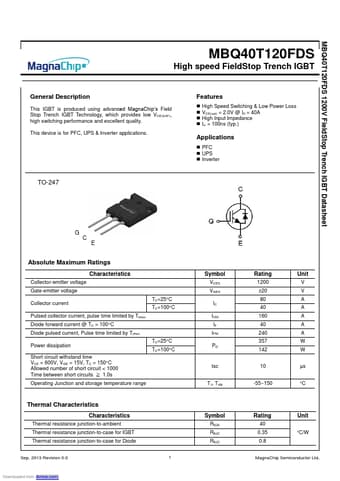

Datasheet preview – MBQ40T120FDS

Datasheet Details

Part number MBQ40T120FDS
Manufacturer MagnaChip
File Size 1.24 MB
Description High speed FieldStop Trench IGBT
Datasheet download datasheet MBQ40T120FDS Datasheet
Additional preview pages of the MBQ40T120FDS datasheet.

📁 Similar Datasheet

Other Datasheets by MagnaChip

Full PDF Text Transcription

Click to expand full text
MBQ40T120FDS 1200V FieldStop Trench IGBT Datasheet MBQ40T120FDS High speed FieldStop Trench IGBT General Description This IGBT is produced using advanced MagnaChip’s Field Stop Trench IGBT Technology, which provides low VCE(SAT), high switching performance and excellent quality. This device is for PFC, UPS & Inverter applications. TO-247 Features  High Speed Switching & Low Power Loss  VCE(sat) = 2.0V @ IC = 40A  High Input Impedance  trr = 100ns (typ.
