ME15N10, N-Channel 100-V (D-S) MOSFET

N-Channel 100-V (D-S) MOSFET GENERAL .
ME15N10/ME15N10-G FEATURES. RDS(ON)≦100mΩ@VGS=10V. Super high density cell design for extremely low RDS(ON). Exceptional on-resistance.

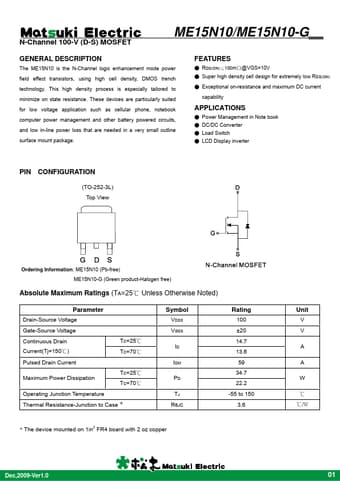

datasheet Preview Page 1 from Datasheet4u.com

ME15N10-Matsuki.pdf

ME15N10 Datasheet Preview — Preview of ME15N10 PDF

Datasheet Details

Part number:

ME15N10

Manufacturer:

Matsuki

File Size:

0.99 MB

Description:

N-Channel 100-V (D-S) MOSFET

Features

* RDS(ON)≦100mΩ@VGS=10V
* Super high density cell design for extremely low RDS(ON)
* Exceptional on-resistance and maximum DC current capability The ME15N10 is the N-Channel logic enhancement mode power field effect transistors, using high cell density, DMOS trench technology. This high

Applications

* Power Management in Note book
* DC/DC Converter
* Load Switch
* LCD Display inverter PIN CONFIGURATION (TO-252-3L) Top View e Ordering Information: ME15N10 (Pb-free) ME15N10-G (Green product-Halogen free) Absolute Maximum Ratings (TA=25℃ Unless Otherwise Noted) Parameter Drain-
