ME15N25-G

N-Channel 250V (D-S) MOSFET

ME15N25-G Features

* RDS(ON)≦265mΩ@VGS=10V

* Super high density cell design for extremely low RDS(ON)

* Exceptional on-resistance and maximum DC current capability APPLICATIONS

* DC/DC Converter

* Load Switch

* LCD/ LED Display inverter PIN CONFIGURATION (TO-252-3L) Top View

* The Orderin

ME15N25-G General Description

The ME15N25 is the N-Channel logic enhancement mode power field effect transistors are produced using high cell density, DMOS trench technology. This high density process is especially tailored to minimize on-state resistance. These devices are particularly suited for low voltage application. FEATU.

ME15N25-G Datasheet (1.08 MB)

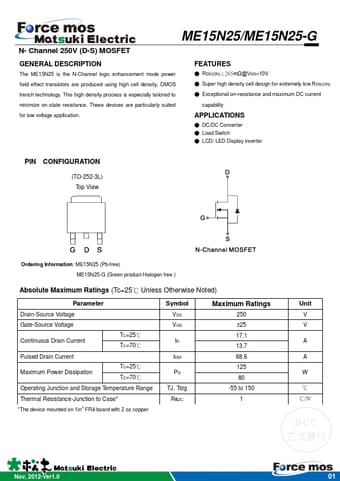

Preview of ME15N25-G PDF

Datasheet Details

Part number:

ME15N25-G

Manufacturer:

Matsuki

File Size:

1.08 MB

Description:

N-channel 250v (d-s) mosfet.
