ME15N25F, N-Channel 250V (D-S) MOSFET

N-Channel 250-V (D-S) MOSFET GENERAL .
The ME15N25F is the N-Channel logic enhancement mode power field effect transistors, using high cell density, DMOS trench technology.

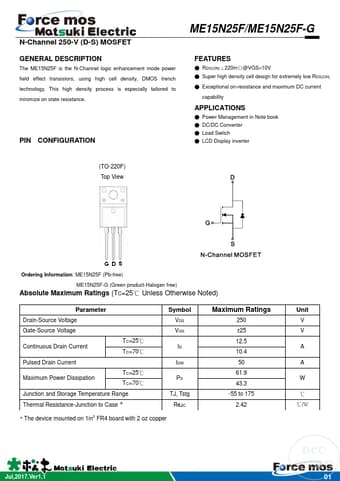

datasheet Preview Page 1 from Datasheet4u.com

ME15N25F-Matsuki.pdf

ME15N25F Datasheet Preview — Preview of ME15N25F PDF

Datasheet Details

Part number:

ME15N25F

Manufacturer:

Matsuki

File Size:

892.23 KB

Description:

N-Channel 250V (D-S) MOSFET

Features

* RDS(ON)≦220mΩ@VGS=10V
* Super high density cell design for extremely low RDS(ON)

Applications

* Power Management in Note book
* DC/DC Converter
* Load Switch
* LCD Display inverter (TO-220F) Top View
* The Ordering Information: ME15N25F (Pb-free) ME15N25F-G (Green product-Halogen free) Absolute Maximum Ratings (TC=25℃ Unless Otherwise Noted) Parameter Drain-Source Volt
