ME15N25 - N-Channel 250V (D-S) MOSFET

Description

The ME15N25 is the N-Channel logic enhancement mode power field effect transistors are produced using high cell density, DMOS trench technology.

This high density process is especially tailored to minimize on-state resistance.

These devices are particularly suited for low voltage application.

Features

  • RDS(ON)≦265mΩ@VGS=10V.
  • Super high density cell design for extremely low RDS(ON).
  • Exceptional on-resistance and maximum DC current capability.

📥 Download Datasheet

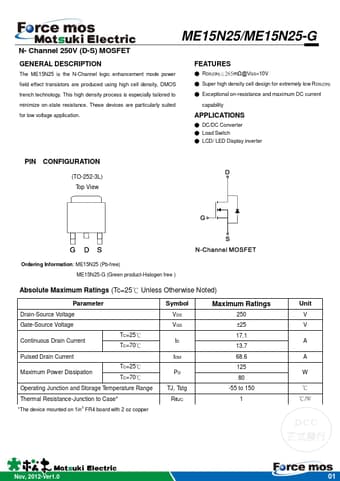

Datasheet preview – ME15N25

Datasheet Details

Part number ME15N25
Manufacturer Matsuki
File Size 1.08 MB
Description N-Channel 250V (D-S) MOSFET
Datasheet download datasheet ME15N25 Datasheet
Additional preview pages of the ME15N25 datasheet.

📁 Similar Datasheet

  • ME15N25 - N-Channel 250V MOSFET (VBsemi)
  • ME15N10 - N-Channel MOSFET (VBsemi)
  • ME1502 - 5V USB High-Side Adjustable Door Limit Current Load Switch (ChipSourceTek)
  • ME1117 - 1.0A Adjustable Voltage High Speed LDO Regulators (Microne)
  • ME1117A12 - 1.0A Adjustable Voltage High Speed LDO Regulators (Microne)
  • ME1117A18 - 1.0A Adjustable Voltage High Speed LDO Regulators (Microne)
  • ME1117A25 - 1.0A Adjustable Voltage High Speed LDO Regulators (Microne)
  • ME1117A33 - 1.0A Adjustable Voltage High Speed LDO Regulators (Microne)
  • ME1117A50 - 1.0A Adjustable Voltage High Speed LDO Regulators (Microne)
  • ME1117F - 1.0A Adjustable Voltage High Speed LDO Regulators (Microne)
Other Datasheets by Matsuki

Full PDF Text Transcription

Click to expand full text
ME15N25/ME15N25-G N- Channel 250V (D-S) MOSFET GENERAL DESCRIPTION The ME15N25 is the N-Channel logic enhancement mode power field effect transistors are produced using high cell density, DMOS trench technology. This high density process is especially tailored to minimize on-state resistance. These devices are particularly suited for low voltage application.
