ME2320DS - N-Channel 20V (D-S) MOSFET

Description

The ME2320DS is the N-Channel logic enhancement mode power field effect transistors are produced using high cell density, DMOS trench technology.

This high density process is especially tailored to minimize on-state resistance.

Features

RDS(ON)=21mΩ@VGS=4.5V.
RDS(ON)=25 mΩ@VGS=2.5V.
RDS(ON)=33 mΩ@VGS=1.8V.
Super high density cell design for extremely low RDS(ON).
Exceptional on-resistance and maximum DC current capability.

Datasheet Details

Part number	ME2320DS
Manufacturer	Matsuki
File Size	1.24 MB
Description	N-Channel 20V (D-S) MOSFET
Datasheet	ME2320DS Datasheet

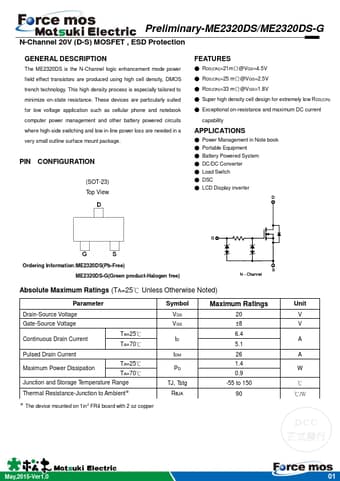

Additional preview pages of the ME2320DS datasheet.
