ME50N75T N-Channel MOSFET

ME50N75T Description

N-Channel 75-V (D-S) MOSFET ME50N75T/ME50N75T-G GENERAL .
The ME50N75T is the N-Channel logic enhancement mode power field effect transistors are produced using high cell density, DMOS trench technology.

ME50N75T Features

* RDS(ON)≦26mΩ@VGS=10V
* Super high density cell design for extremely low RDS(ON)

ME50N75T Applications

* Power Management
* DC/DC Converter
* Load Switch PIN CONFIGURATION (TO-220) Top View e Ordering Information: ME50N75T (Pb-free) ME50N75T-G (Green product-Halogen free) Absolute Maximum Ratings (TC=25℃ Unless Otherwise Noted) Parameter Drain-Source Voltage Gate-Source Voltage Cont

📥 Download Datasheet

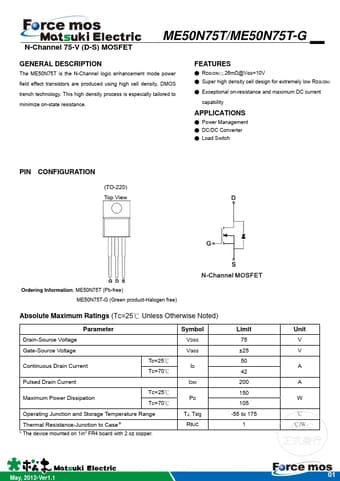

Preview of ME50N75T PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ME50N75T
Manufacturer
Matsuki
File Size
1.16 MB
Datasheet
ME50N75T-Matsuki.pdf
Description
N-Channel MOSFET
