ME80N08AF - N-Channel MOSFET

ME80N08AF Description

N-Channel 80V (D-S) MOSFET ME80N08AF/ME80N08AF-G GENERAL .
The ME80N08AF is the N-Channel logic enhancement mode power field effect transistors are produced using high cell density, DMOS trench technology.

ME80N08AF Features

* RDS(ON)≦5mΩ@VGS=10V
* Super high density cell design for extremely low RDS(ON)

ME80N08AF Applications

* Power Management in Note book
* DC/DC Converter
* Load Switch
* LCD Display inverter PIN CONFIGURATION (TO-220F) Top View
* The Ordering Information: ME80N08A F(Pb-free) ME80N08AF-G (Green product-Halogen free) Absolute Maximum Ratings (TC=25℃ Unless Otherwise Noted) Paramet

📥 Download Datasheet

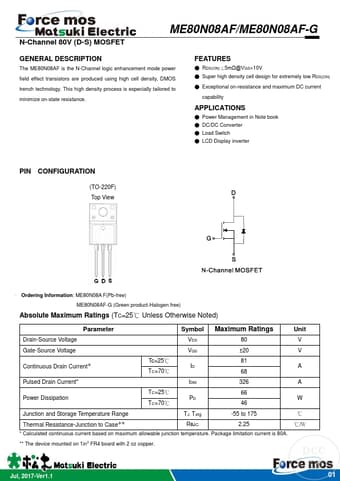

Preview of ME80N08AF PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ME80N08AF
Manufacturer
Matsuki
File Size
918.48 KB
Datasheet
ME80N08AF-Matsuki.pdf
Description
N-Channel MOSFET
