ME80N08AH-G, ME80N08AH Datasheet - Matsuki

ME80N08AH-G, ME80N08AH, N-Channel MOSFET

80V N-Channel Enhancement Mode ME80N08AH/ME80N08AH-G GENERAL .
The ME80N08AH is the N-Channel logic enhancement mode power field effect transistors are produced using high cell density, DMOS trench technology.

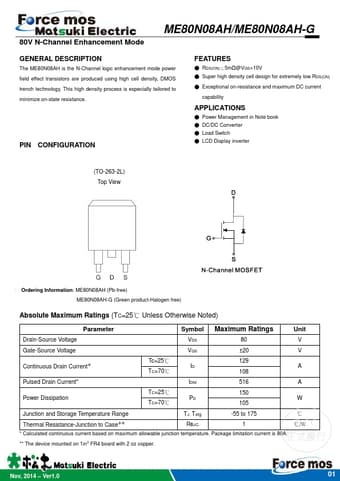

datasheet Preview Page 1 from Datasheet4u.com

ME80N08AH-Matsuki.pdf

ME80N08AH-G Datasheet Preview — This datasheet PDF includes multiple part numbers: ME80N08AH-G, ME80N08AH. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ME80N08AH-G, ME80N08AH

Manufacturer:

Matsuki

File Size:

794.83 KB

Description:

N-Channel MOSFET

Note:

This datasheet PDF includes multiple part numbers: ME80N08AH-G, ME80N08AH.
Please refer to the document for exact specifications by model.

Features

* RDS(ON)≦5mΩ@VGS=10V
* Super high density cell design for extremely low RDS(ON)

Applications

* Power Management in Note book
* DC/DC Converter
* Load Switch
* LCD Display inverter (TO-263-2L) Top View The Ordering Information: ME80N08AH (Pb-free) ME80N08AH-G (Green product-Halogen free) Absolute Maximum Ratings (TC=25℃ Unless Otherwise Noted) Parameter Symbol Maximum Ra
