MAX19707, Ultra-Low-Power Analog Front-End

19-3826; Rev 1; 6/07 KIT ATION EVALU E L B AVAILA 10-Bit, 45Msps, Ultra-Low-Power Analog Front-End .
The MAX19707 is an ultra-low-power, mixed-signal analog front-end (AFE) designed for power-sensitive communication equipment.

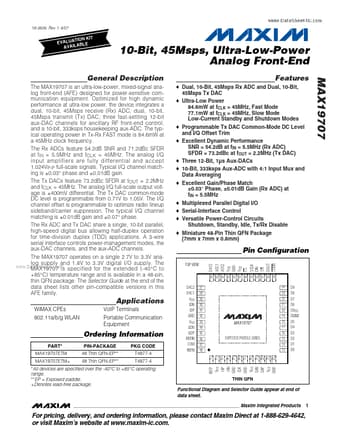

datasheet Preview Page 1 from Datasheet4u.com

MAX19707_MaximIntegratedProducts.pdf

MAX19707 Datasheet Preview — Preview of MAX19707 PDF

Datasheet Details

Part number:

MAX19707

Manufacturer:

Maxim Integrated ↗ Products

File Size:

603.80 KB

Description:

Ultra-Low-Power Analog Front-End

Features

* Dual, 10-Bit, 45Msps Rx ADC and Dual, 10-Bit, 45Msps Tx DAC
* Ultra-Low Power 84.6mW at fCLK = 45MHz, Fast Mode 77.1mW at fCLK = 45MHz, Slow Mode Low-Current Standby and Shutdown Modes
* Programmable Tx DAC Common-Mode DC Level and I/Q Offset Trim
* Excellent Dynami

Applications

* A 3-wire serial interface controls power-management modes, the aux-DAC channels, and the aux-ADC channels. The MAX19707 operates on a single 2.7V to 3.3V analog supply and 1.8V to 3.3V digital I/O supply. The www. DataSheet4U. com MAX19707 is specified for the extended (-40°C to +85°C) temperature ra
