MAX197 - 12-Bit DAS

Maxim

📥 Download Datasheet

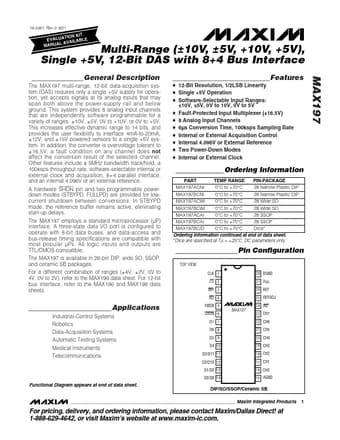

MAX197 Datasheet Preview — Preview of MAX197 PDF

Datasheet Details

Part number: MAX197
Manufacturer: Maxim
File Size: 599.50 KB
Datasheet: MAX197_MaximIntegratedProducts.pdf
Description: 12-Bit DAS

MAX197 Product details

Description

The MAX197 multi-range, 12-bit data-acquisition system (DAS) requires only a single +5V supply for operation, yet accepts signals at its analog inputs that may span both above the power-supply rail and below ground.

Features

include a 5MHz bandwidth track/hold, a 100ksps throughput rate, software-selectable internal or external clock and acquisition, 8+4 parallel interface, and an internal 4.096V or an external reference. A hardware SHDN pin and two programmable powerdown modes (STBYPD, FULLPD) are provided for lowcurrent shutdown between conversions. In STBYPD mode, the reference buffer remains active, eliminating start-up delays. The MAX197 employs a standard microprocessor (µP) interface. A three-state data I/O p.
