MAX19708 Datasheet - Maxim

Ultra-Low-Power Analog Front-End

MAX19708 Features

* Dual 10-Bit, 11Msps Rx ADC and Dual 10-Bit, 11Msps Tx DAC

* Ultra-Low Power 36.9mW at fCLK = 5.12MHz, Fast Mode 19.8mW at fCLK = 5.12MHz, Slow Mode Low-Current Standby and Shutdown Modes

* Integrated TD-SCDMA Filters with > 55dB Stopband Rejection

* Programmable Tx

MAX19708 General Description

The MAX19708 is an ultra-low-power, mixed-signal analog front-end (AFE) designed for TD-SCDMA handsets and data cards. Optimized for high dynamic performance at ultra-low power, the device integrates a dual 10-bit, 11Msps receive (Rx) ADC; dual 10-bit, 11Msps transmit (Tx) DAC with TD-SCDMA baseband.

MAX19708 Datasheet (548.22 KB)

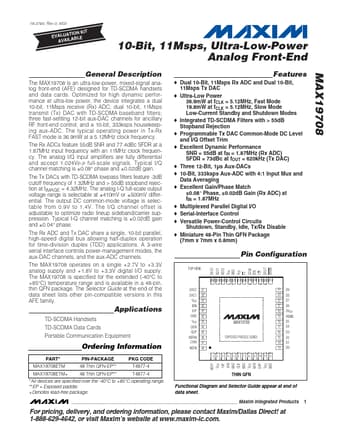

MAX19708 Datasheet Preview — Preview of MAX19708 PDF

Datasheet Details

Part number:

MAX19708

Manufacturer:

Maxim

File Size:

548.22 KB

Description:

Ultra-low-power analog front-end.
