MAX1976A, MAX1963A, 300mA LDO Regulators

19-3684; Rev 1; 5/12 MAX1963A/MAX1976A Low-Input-Voltage, 300mA LDO Regulators with RESET in SOT and TDFN General .
The MAX1963A/MAX1976A low-dropout linear regulators operate from a +1.

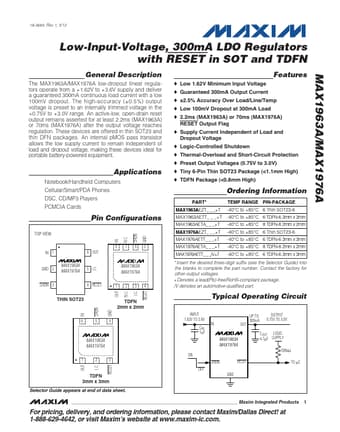

datasheet Preview Page 1 from Datasheet4u.com

MAX1963A-MaximIntegrated.pdf

MAX1976A Datasheet Preview — This datasheet PDF includes multiple part numbers: MAX1976A, MAX1963A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MAX1976A, MAX1963A

Manufacturer:

Maxim Integrated ↗

File Size:

192.39 KB

Description:

300mA LDO Regulators

Note:

This datasheet PDF includes multiple part numbers: MAX1976A, MAX1963A.
Please refer to the document for exact specifications by model.

Features

* o Low 1.62V Minimum Input Voltage o Guaranteed 300mA Output Current o ±2.5% Accuracy Over Load/Line/Temp o Low 100mV Dropout at 300mA Load o 2.2ms (MAX1963A) or 70ms (MAX1976A) RESET Output Flag o Supply Current Independent of Load and Dropout Voltage o Logic-Controlled Shutdown o Thermal-Overload a

Applications

* Notebook/Handheld Computers Cellular/Smart/PDA Phones DSC, CD/MP3 Players PCMCIA Cards Pin Configurations IN N. C. SHDN GND TOP VIEW + IN 1 6 OUT MAX1963A GND 2 MAX1976A 5 I. C. 8 765 MAX1963A MAX1976A SHDN 3 4 RESET + 1 2 3 4 THIN SOT23 TDFN 2mm x 2mm 6 5 4 IN SHDN GND OUT N. C. I. C. RES
