MAX1976 - Low-Input-Voltage / 300mA LDO Regulators with RESETin SOT and TDFN

Maxim

📥 Download Datasheet

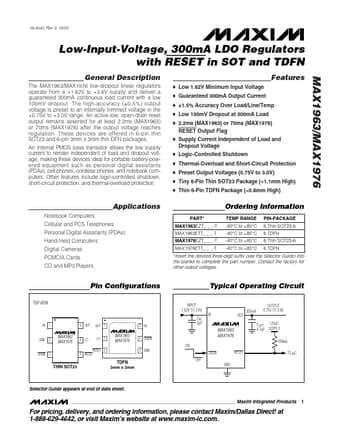

MAX1976 Datasheet Preview — Preview of MAX1976 PDF

Datasheet Details

Part number: MAX1976
Manufacturer: Maxim
File Size: 354.82 KB
Datasheet: MAX1976_MaximIntegratedProducts.pdf
Description: Low-Input-Voltage / 300mA LDO Regulators with RESETin SOT and TDFN

MAX1976 Product details

Description

The MAX1963/MAX1976 low-dropout linear regulators operate from a +1.62V to +3.6V supply and deliver a guaranteed 300mA continuous load current with a low 100mV dropout.

Features

include logic-controlled shutdown, short-circuit protection, and thermal-overload protection. o Low 1.62V Minimum Input Voltage o Guaranteed 300mA Output Current o ±1.5% Accuracy Over Load/Line/Temp o Low 100mV Dropout at 300mA Load o 2.2ms (MAX1963) or 70ms (MAX1976) RESET Output Flag o Supply Current Independent of Load and Dropout Voltage o Logic-Controlled Shutdown o Thermal-Overload and Short-Circuit Protection o Preset Output Voltages (0.75V to 3.0V) o Tiny 6-Pin Thin SOT23 Package (.
